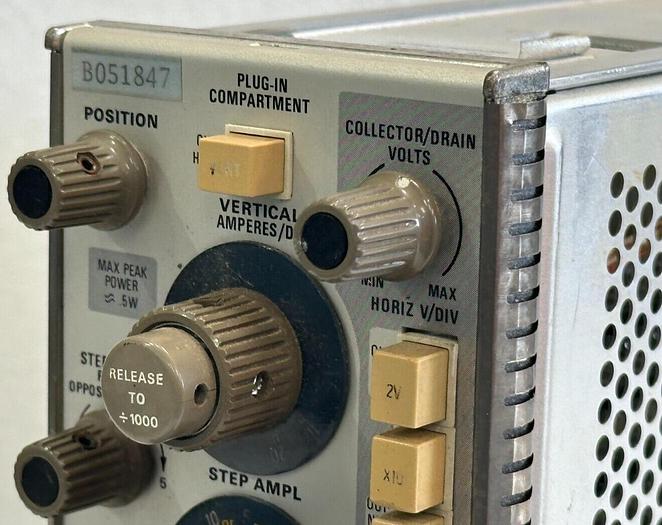

Tektronix 7CT1N Curve Tracer Plug-in for 7000 Series Scopes *Good*

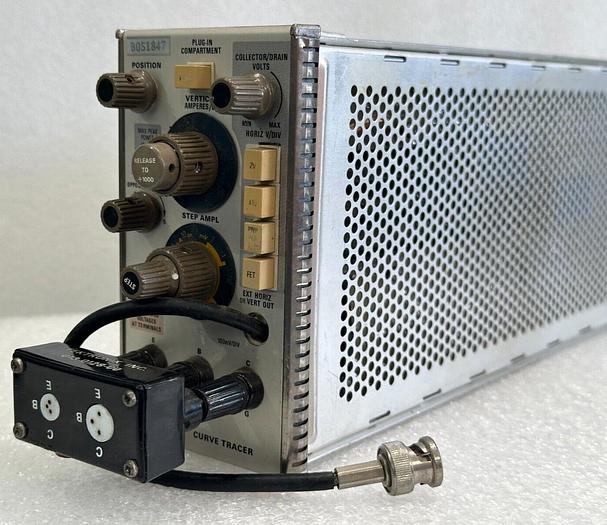

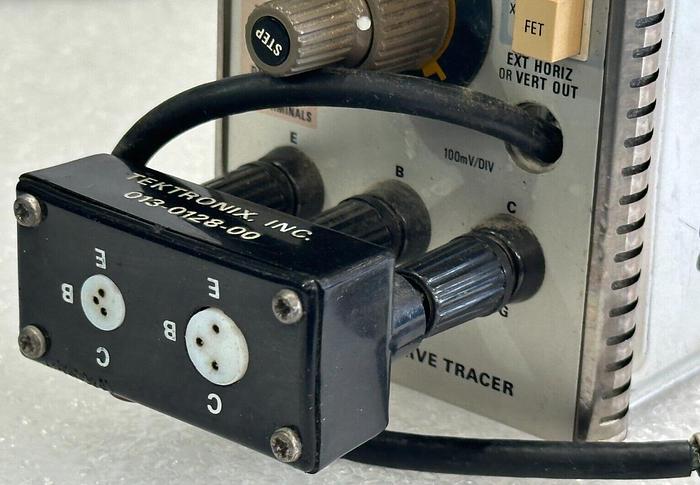

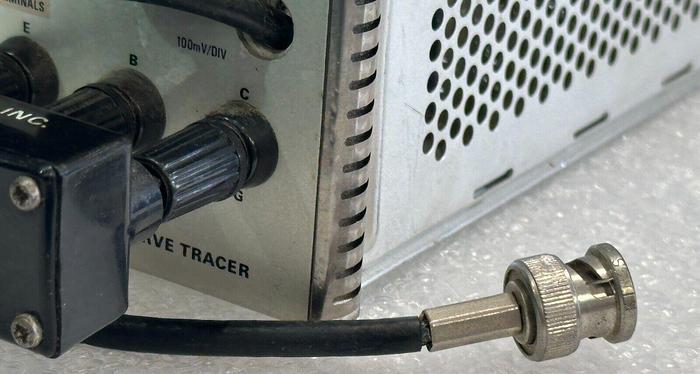

This plug-in is fully operational. The Tektronix 7CT1N is a curve tracer plug-in for 7000-series scopes. The 5CT1N plug-in for 5000-series scopes is very similar. It can be installed in either a vertical or a horizontal compartment, a front-panel switch must be set accordingly. A pull-out cable with a plastic BNC plug connects to the input of a module installed in the corresponding plugin for the other axis, with a fixed 100 mV/div scaling compatible with time base X inputs. Internally, a variable-amplitude 55 Hz triangle-wave source supplies a transformer to step up the drive voltage and decouple it from ground (Emitter terminal). A step source supplies base current or gate voltage to the DUT.
