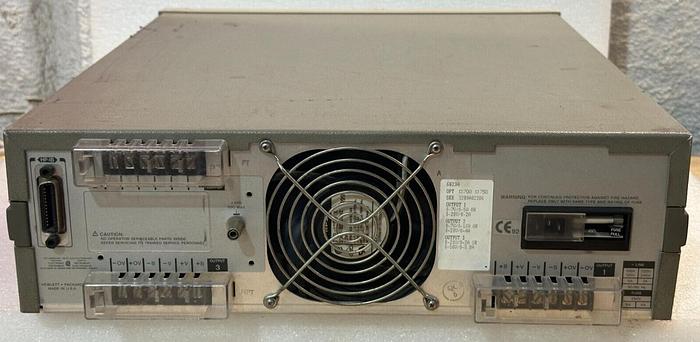

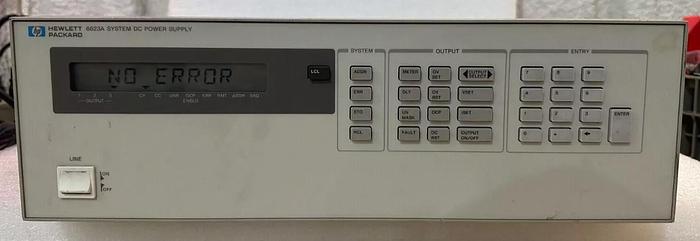

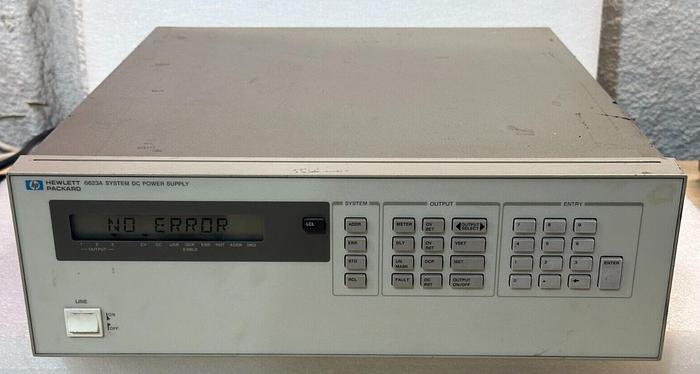

HP 6623A System DC Power Supply *Guaranteed*

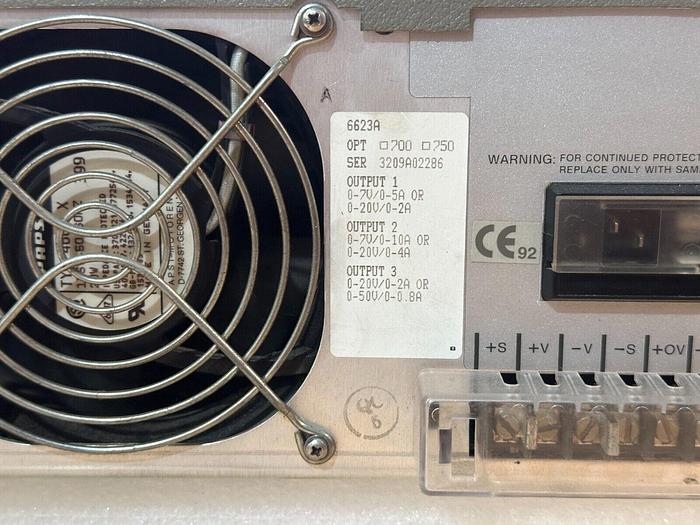

This unit is fully operational and ready to be used. The 6623A is a triple-output, GPIB system power supply that has low noise power supply outputs combined with a built in GPIB interface. Simple programming commands ease access to all features and capabilities. Three isolated outputs are integrated into one package, conserving rack space and GPIB addresses. Most of the outputs also provide dual ranges, for more current at lower voltage levels. The outputs can be connected in parallel or series to further increase the flexibility that these products offer the system designer. Programming is done using industry standard SCPI commands. Test system integration can be further simplified by using the VXI plug&play drivers. These power supplies help reduce test time with fast up and down programming, enhanced by an active downprogrammer which can sink the full rated current. Low-range volts, amps: 0 to 7 V, 0 to 5 A; 0 to 20 V, 0 to 2 A; 0 to 7 V, 0 to 10 A High range volts, amps: 0 to 20 V, 0 to 2 A; 0 to 50 V, 0 to 0.8 A; 0 to 20 V, 0 to 4 A Programming accuracy at 25°C ±5°C Ripple & noise (20 Hz to 20 MHz) GPIB programming of voltage and current Measured voltage and current read-back over the GPIB Two outputs can be connected in parallel or in series Automatic selection of operating voltage and current range Fast, low-noise outputs Built-in measurements and advanced programmable features Protection features to ensure DUT safe Programmable over-voltage and over-current protection Self-test occurs at power-on from an GPIB command Electronic calibration via GPIB 10 store-recall states SCPI (Standard Comments for Programming Instruments) VXI plug & play drivers
