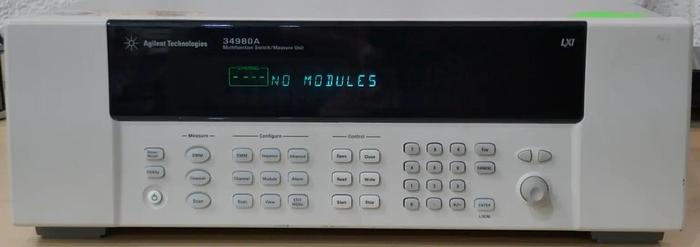

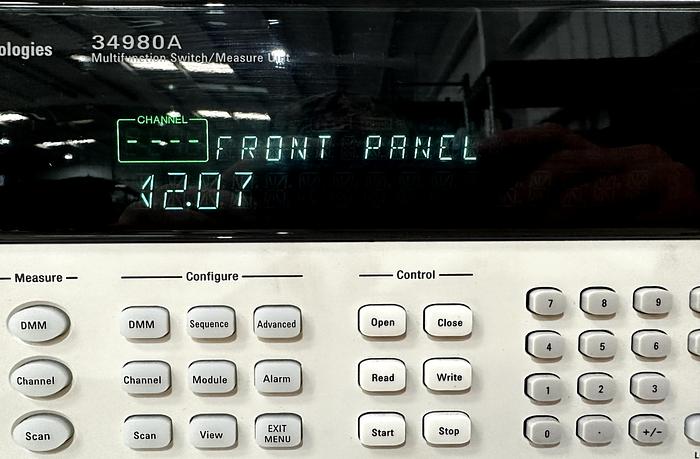

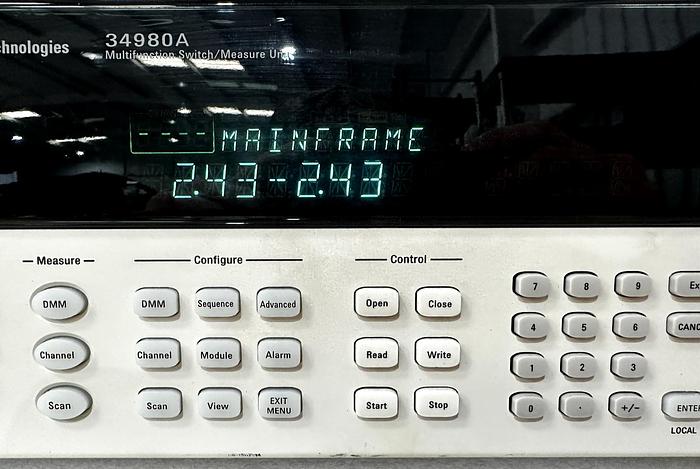

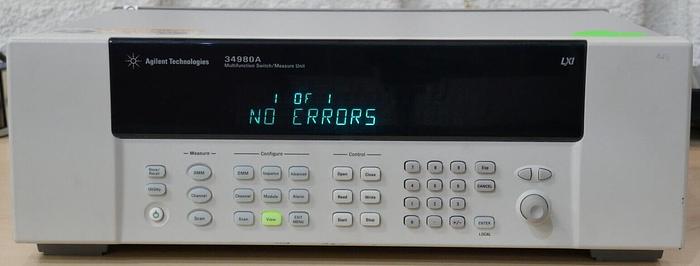

Agilent 34980A Multifunction Switch/Measure Unit NON-DMM

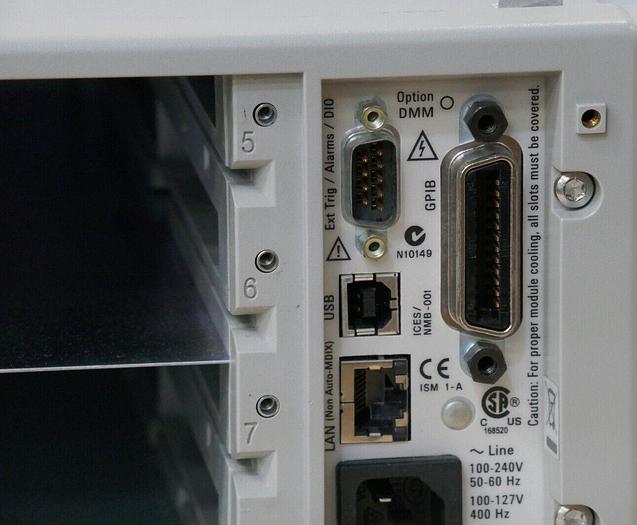

Unit is fully operational, and is guaranteed. The 34980A is an eight-slot mainframe. That includes optional plug-in modules for switching from DC to 20 GHz, digital I/O, D/A converters, and counter/totalizer functionality. One mainframe can accommodate up to 560 2-wire multiplexer channels or 1024 2-wire matrix cross points. The 34980A also includes USB, Ethernet, and GPIB as standard interfaces to the PC. With Ethernet connections and the graphical web interface, you can access and control the unit remotely. Standard connectors on the modules also allow you to use standard, off-the-shelf 50 and 70 pin shielded cables to easily connect test signals from the instrument to the unit under test or other test points. Additional wiring options include detachable terminal blocks for discrete wiring needs and mass interconnect solutions. Unit does not contain DMM. *Shipping is $65. Unit will be packed in Anti-Static Foam and fully insured.
