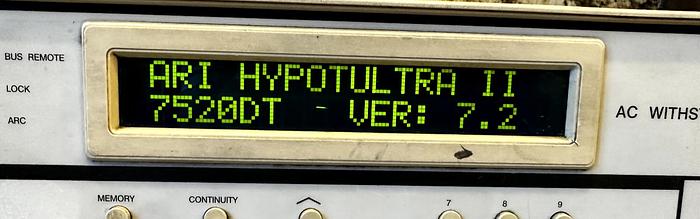

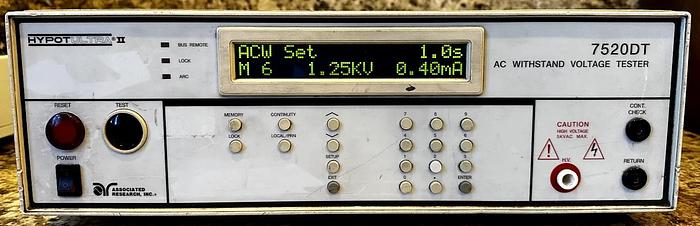

Associated Research 7520DT AC Withstand Voltage Tester Ver 7.2 *REPAIR*
Associated Research 7520DT AC Withstand Voltage Tester Ver 7.2 *REPAIR*
$535.50 (USD)
Location:Rockwall, TX
Description
This unit has a noisy fan, and the test lights do not light up at all. No repair attempts have been made by me.
*Shipping inside the US is $50, unit will be foam packed and fully insured.

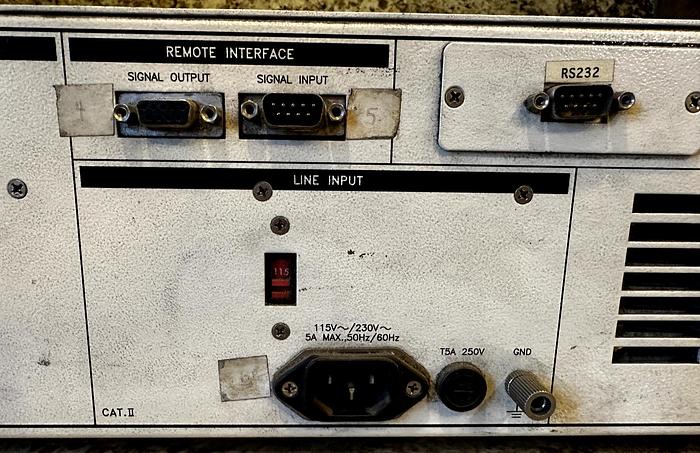

115/230 VAC, 15 %, 47 - 63 Hz, AC Hypot with Ground Continuity Test Set
Features:
Specifications
| Manufacturer | associated research |
| Model | 7520DT |
| Condition | Used |
| Stock Number | 364528532660 |
| Type | Earth Ground Resistance Meter |
| Country/region of manufacture | Taiwan |
| Input voltage | 115/230 VAC, ± 15 %, Single Phase, User Selection |
| Input frequency | 47 - 63 Hz |
| Output rating | 5 KV @ 20 mA AC |
| Output adjustment range | 0 - 5 KV AC |
| Output adjustment resolution | 1 volt/step |
| Output adjustment accuracy | ± (2% of setting + 5 volts) |
| Ramp-hi | 12 mA peak maximum, ON/OFF selectable |
| Charge-lo range | 0.0 - 350.0 µA DC or Auto set |
| Hi-limit range | 0.00 - 20.00 mA |
| Hi-limit resolution | 0.01 mA/steps |
| Hi-limit accuracy | ± (2% of setting + 2 counts) |
| Lo-limit range | 0.000 - 9.999 mA |
| Lo-limit resolutions | 0.001 mA/steps |
| Lo-limit accuracy | ± (2% of setting + 2 counts) |
| Arc detection rabge | 1 - 9 |
| Failure detector | Audible and Visual |
| Ground continuity current | DC 0.1A ± 0.01A, fixed |
| Ground continuity max. ground resistance | 1 O ± 0.1 O, fixed |
